Universal Motor
详细规格及用途描述
GR-M16F
Volt (vdc): 110 / 220
AMPS (A): 220 / 0.75
Speed (RPM): 11500
Output (w): 90
Torque (kg-cm): 0.82
Rating (min): 5
Weight (kg): 1.7
GR-8040F
Volt (vdc): 110 / 220
AMPS (A): 1.8 / 0.9
Speed (RPM): 18000
Output (w): 120
Torque (kg-cm): 1.15
Rating (min): 5
Weight (kg): 1.9
GR-8050F
Volt (vdc): 110 / 220
AMPS (A): 2.6 / 1.3
Speed (RPM): 18000
Output (w): 180
Torque (kg-cm): 1.8
Rating (min): 5
Weight (kg): 1.92

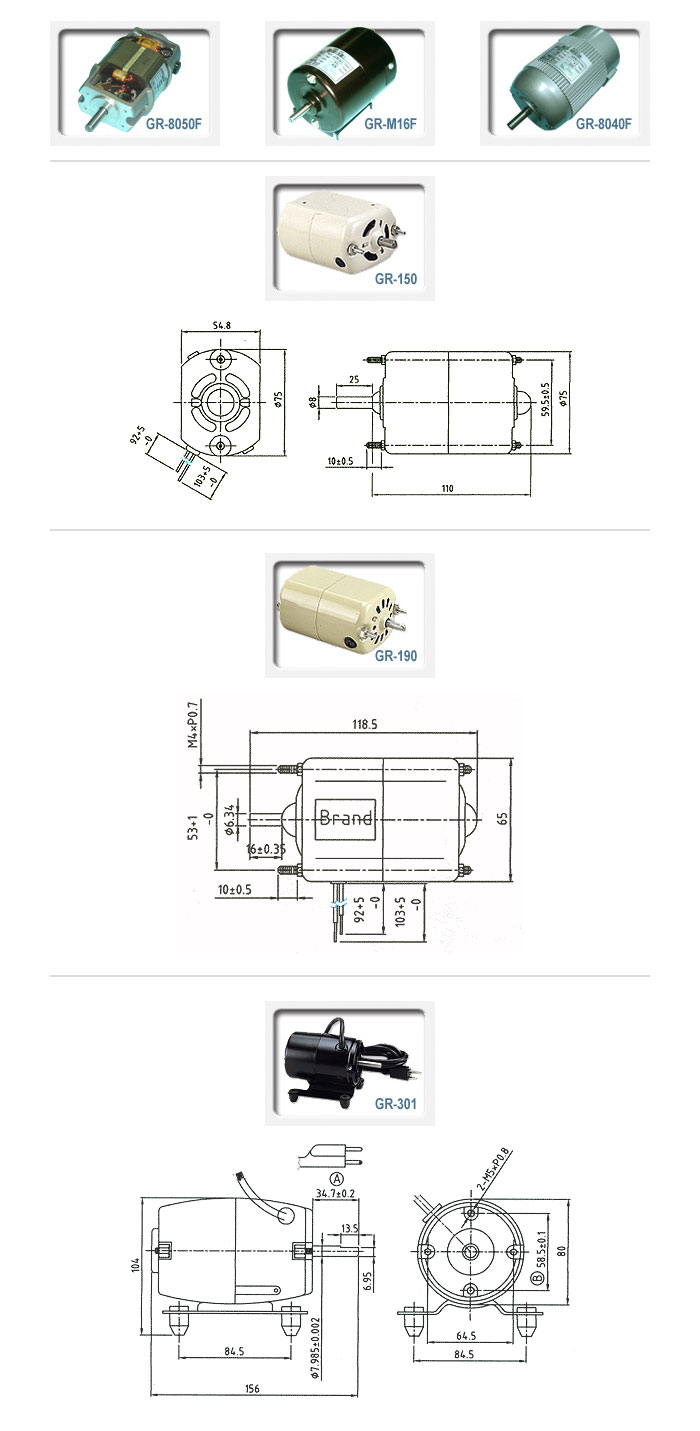

GR-150 / GR-190 / GR-301
Nominal Valtage：100~250V
Nominal Speed：15,000～25,000rpm
