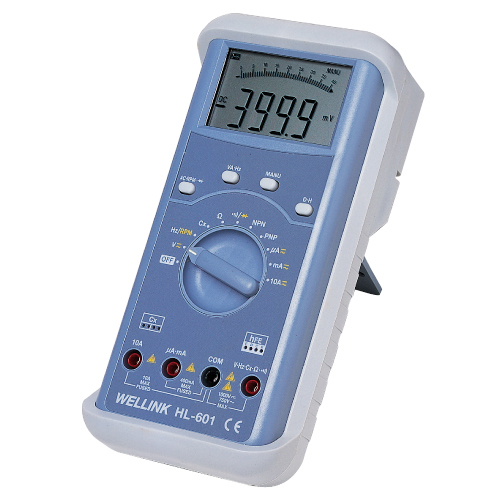

Auto-Range Digital Multi-Meter

Auto-Range Digital Multi-Meter

Model:

HL-601

Country of Origin:

Taiwan

Detail Specifications / Descriptions
‧4000 counts and bar graph display
‧Auto-Range and manual selection
‧V-Hz mode for voltage and frequency change measurement
‧Auto power off and re-power-on
‧Date hold
‧Low battery detect


‧DC Volt (Auto): 0-400mV/4V/40V/400V/1000V ±0.8%
‧AC Volt (Auto): 0-400mV/4V/40V/400V/750V ±1.0%
‧Frequency (Auto): 0-4KHz/40KHz/400KHz/4MHz/40MHz ±0.5%
‧RPM (Auto): 0-40K/400K/4M/40M/400M RPM ±0.5%
‧Resistance (Auto): 0-400Ω/4KΩ/40KΩ/400KΩ/4MΩ/ ±1.0%, 40MΩ ±2.0%
‧Capacitance (Auto): 0-4nF/40nF/400nF/4μF/40μF/400μF ±1.5%, 4mF/40mF ±3.0%
‧DCμA (Auto): 0-400μA/4000μA ±0.8%
‧DC mA (Auto): 0-40mA/400mA ± 0.8%
‧DC10A: 0-10A ±1.0%
‧ACμA (Auto): 0-400μA/4000μA ±1.2%
‧ACmA (Auto): 0-40mA/400mA ±1.2%
‧AC10A: 0-10A ±1.5%
‧Continuity test function: Beep<35Ω
‧Diode test function: Beep<0.25V
‧Transistor test function (NPN/PNP)


‧Protective holster
‧Dimension: 185(H)x85(W)x35(D)mm
‧Weight: 510g approx. including Protective holster
‧Safety: CE Approved, IEC 1010-2 (EMC / LVD)


Remark:
No accessory is provided in this meter for RPM measurement.
Additional purse sensor is needed for this purpose.
