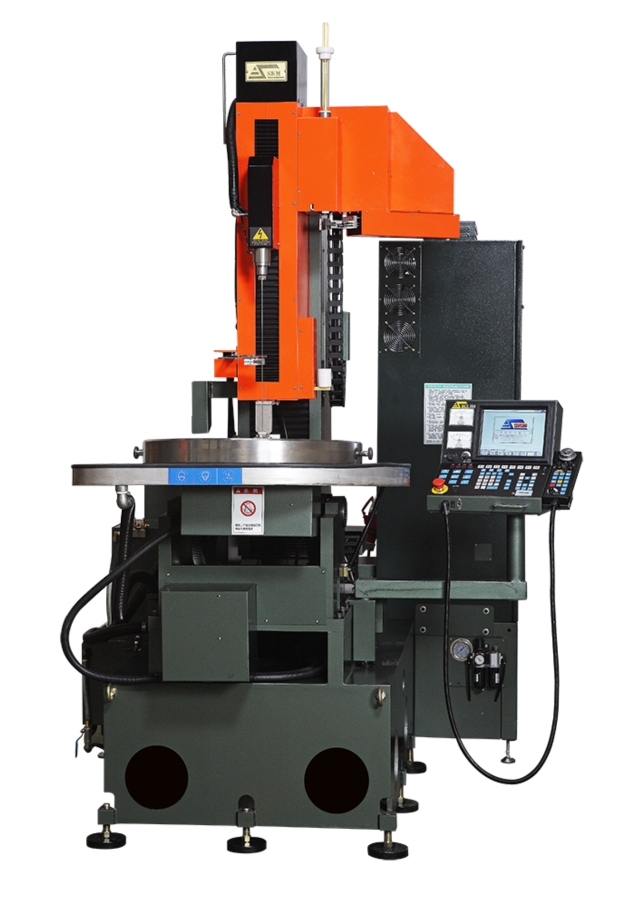

Tire Mold Dedicated Hole Drilling EDM
Tire Mold Dedicated Hole Drilling EDM

Model:TD66

Detail Specifications / Descriptions

  • 1. Y、Z、C、U、V、B 6 axis use AC servo motor. High efficiency and precision .
  • 2. Automatic Brass Change System (PATENT). Maximum brass store 60 pcs. Can be 24hr uninterrupted machining ,improve machine effectiveness.
  • 3. Using brass length 600 mm. Reduce the loss of brass.
  • 4. Exclusive using special hole drilling through detector. Reduce drilling time.
  • 5. Processing fluid using ionized water ,with circulation filtration system. High machine effectiveness.
  • 6. V axis -10°~ 80° , U axis 0°~360° combined with computer automatic control. Suitable for all tire mold vent hole processing.
  • 7. Y、Z、C axis design using linear guide ,with precision ball screw.
    High-precision and long life.
  • 8. Use 64 bit industrial computer (IPC) , 8 axis motion control card. high stability and reliability.
  • 9. Option addition SKM serve system. Via the internet instant monitoring machine processing, program file transfer.
  • 10. Use dialogue editor, Simple and easy to understand. Also combined ISO code acceptable CAD/CAM format files can be widely used.
  • 11. Special machining code can be set up to 6 different depth and drilling EDM.
    Condition for each hole processing. To raise substantially for machining efficiency.


Tire Mold Dedicated Hole Drilling EDM
Tire Mold Dedicated Hole Drilling EDM
Tire Mold Dedicated Hole Drilling EDM
Related Products
Specification TD66
X-travel
Y-travel500 mm
Z-travel750 mm
Backslide travel600 mm
B-travel360°
U-travel360°
V-travel-10°~85°
Table dimensionØ438 mm
Work table dimensionØ910 mm
Maximum workpiece dimensionØ900 mm
Maximum distance od table quill (Guide)280 mm
Electrode pipe dimensionØ0.3~Ø3.0 mm
(special Ø0.1~6.0 mm)
Automatic brass tube replacement electrode dimension (option)400mm銅管Ø0.8~Ø3.0 600mm銅管Ø01.0~Ø3.0 (Special specifications are negotiable)
Processing fluid capacity (pure water)45 Liter
Water tank capacity55 Liter
Filter Element1 pcs
Machine weight2500 kgs
Machine Height2265~2765 mm
