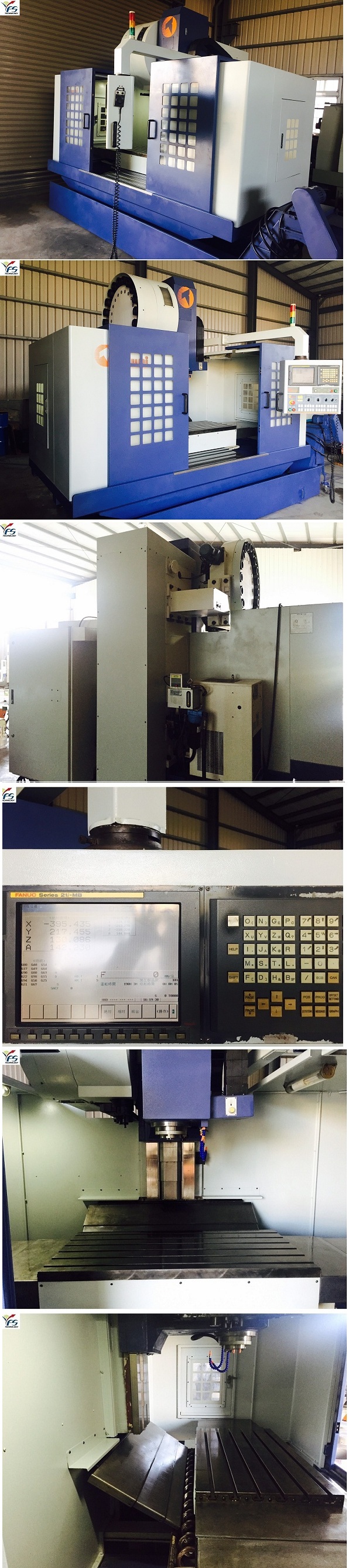

Takumi,V-11,Vertical Machining Center,Box Way,Used Machine Tools,CNC Milling

Takumi,V-11,Vertical Machining Center,Box Way,Used Machine Tools,CNC Milling

Hot
Model:

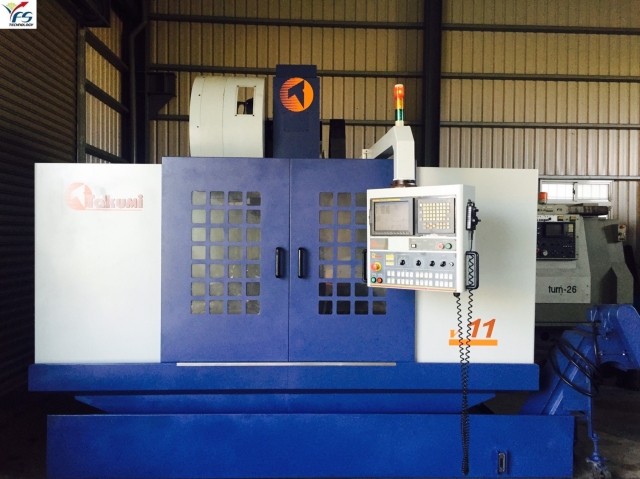

匠澤Takumi V-11
Country of Origin:
Taiwan

Detail Specifications / Descriptions

Manufacturer:Takumi
Model:V11
Year:2008
X/Y/Z axis travel :1,100/660/610mm
Table Dimensions:1050x650mm
Table Maximum Load:1100kgs
Spindle Type:Belt
Spindle Speed:6000rpm
Motor Power(continuation/30 min):7.5/15kw
Tool Shank:BT50
Magazine Capacity:24 tools
Controller:FANUC 21i-MB
Machine Net Weight:8000kgs
Maximum Floor Space(W x L x H):5420x3900x3139mm
The machine specification above is for reference only. The real object should be considered as final.
