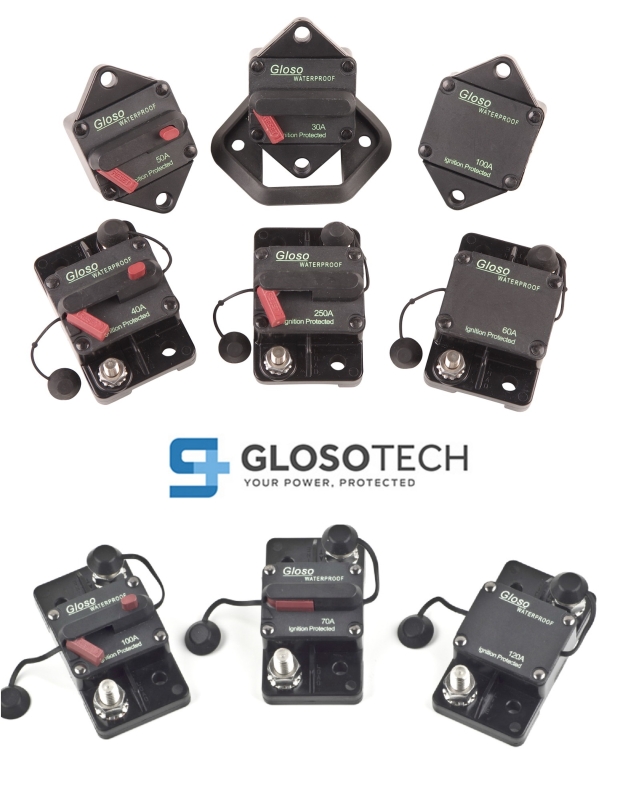

E9 Hi-Amp Circuit Breaker

E9 Hi-Amp Circuit Breaker

Model:

E9 Hi-Amp Circuit Breaker

Country of Origin:

China

Material:

Black UL-Rated 94V0 thermoplastic

Color:

Black

Minimum Order:

100

Delivery Lead Time:

2 weeks

Detail Specifications / Descriptions
Rating: 25-200A, 48Vdc
Interrupt Rating: 3000A @ 30Vdc
Operating Temperature Rating: –25°F (–32°C) to 180°F (82°C)
Storage Temperature Rating: –30°F (–34°C) to 300°F (149°C)
Materials: Black UL-Rated 94V0 thermoplastic. Thermoplastic elastomer stud insulators are provided on covered units
Marking: Custom marking are available
Termination: 1/4-28 and 3/8 threaded studs are both available
Torque Rating: 50 in-lbs (5.6N•m) max
Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5.6N•m) max. Threaded insert
option has a max torque of 25 in-lbs (2.8N•m).
Ingress Protection Rating: IP67
Compliances: SAE J1625; ABYC E-11; CE; SAE J1171 (ignition protected)
